LTS-Base
Ethernet-Connected Wireless Telemetry Base Station
Description
The LTS-Base is the network gateway for an LTS telemetry deployment, connecting wireless field devices, sensors and instruments to an Ethernet/LAN-based monitoring architecture. It receives incoming radio data and exposes it across the local network, allowing measurements to be viewed remotely or passed into an existing data-management system. Acting as a compact device server, it removes the need for a dedicated computer at the radio collection point.
Designed for fixed industrial installations, the LTS-Base supports multiple radio technologies, including ZigBee, 802.15.4, DigiMesh, Wi-Fi and proprietary frequency-hopping radios. Optional high-power 2.4 GHz and 900 MHz configurations extend coverage from plant rooms and controlled areas to widely distributed monitoring locations. Power can be supplied from 12 VDC, an external adapter or Power over Ethernet, simplifying deployment where outlets are limited. Dual external SMA antenna connections provide flexibility for site-specific antenna placement and range requirements.
Key Features
Ethernet-to-Wireless Gateway
Connect field radios, sensors and instruments to an Ethernet/LAN monitoring architecture, making wireless telemetry available to remote users and networked software.
Mini Server Functionality
Manage incoming radio data at the collection point and expose it over the local network without requiring a dedicated computer beside the base station.
Multiple Radio Options
Support ZigBee, 802.15.4, DigiMesh, 802.11bgn Wi-Fi and proprietary frequency-hopping configurations, with optional high-power 2.4 GHz and 900 MHz radios for extended coverage.
Flexible Industrial Power
Operate from 12 VDC, an external power adapter or Power over Ethernet, giving installers practical options where access to conventional outlets is limited.
Adaptable Antenna Configuration
Two external SMA antenna connections allow antenna selection and placement to be tailored to the building layout, radio option and required coverage area.

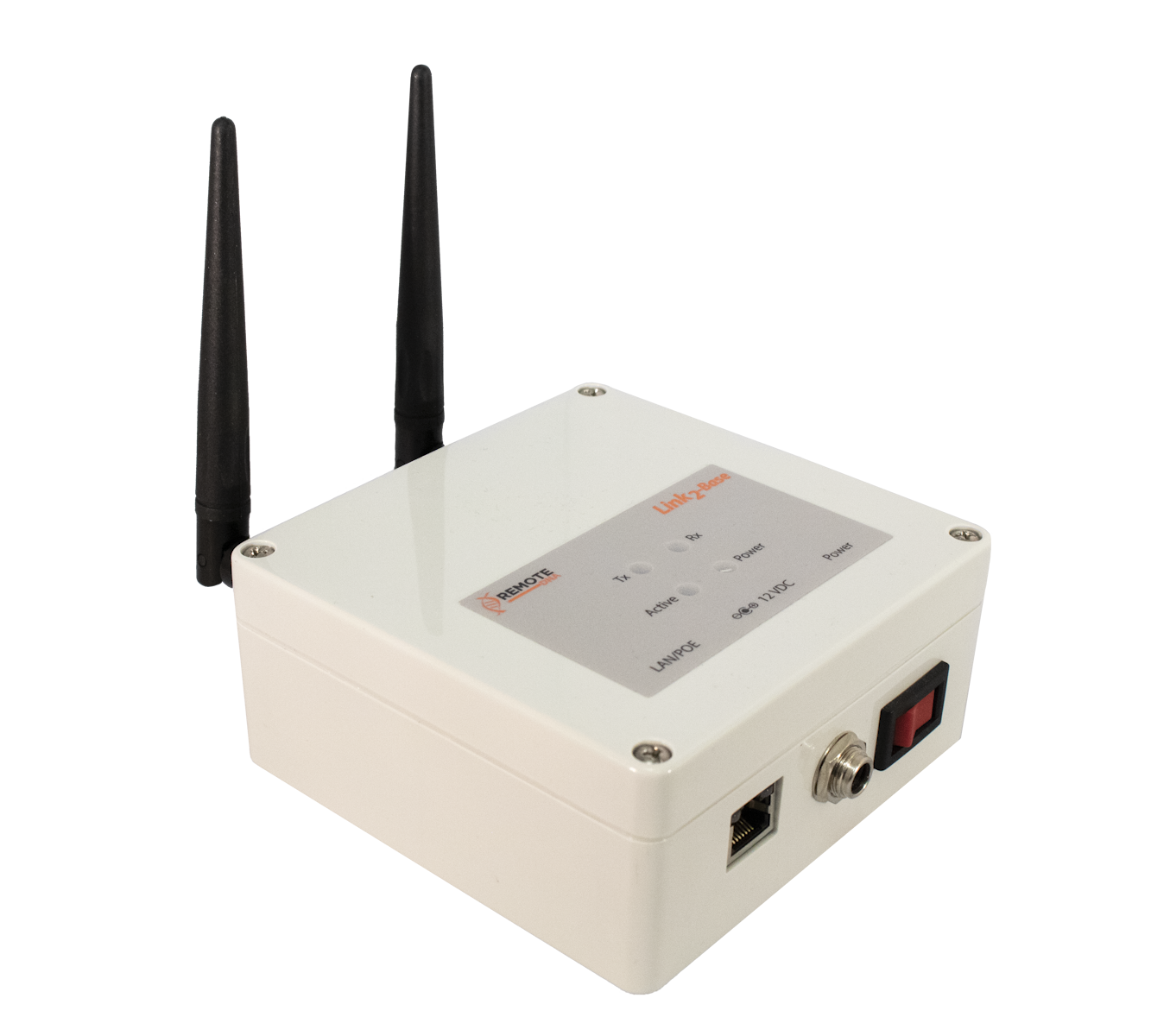

Product Images
Specifications
Mesh Radio Performance
Transmit Power Output / 1.75 mW
Interface Data Rate / Internal 115,200 bps
RF Data Rate / 250 kbps
Receiver Sensitivity / -96 dBm
FCC Part 15.247 / TYOJN5168M5
Industry Canada (IC) / 7438A-CYO5168M5
Optional Radio: HP Mesh
Frequency / ISM 2.4-2.5 GHz
Transmit Power Output / 79 mW
Range Indoor/Urban / Up to 500 ft (150 m)
Range Outdoor/Line of Sight / Up to 0.6 mile (1 km)
RF Data Rate / 250,000 bps
Receiver Sensitivity / -102.1 dBm
FCC Part 15.247 / QOQMGM13P
Industry Canada (IC) / 5123A-MGM13P
Optional Radio: Digi XR
Frequency / 902 MHz - 928 MHz; 915 MHz - 928 MHz
Transmit Power Output / 79 mW
Range Indoor/Urban / Up to 460 ft / up to 3 km (1.8 mi)
Range Outdoor/Line of Sight / Up to 15 km (10 mi)
RF Data Rate / 110,000 bps
Receiver Sensitivity / -108 dBm (110 kbps)
FCC Part 15.247 / MCQ-XB9XR
Industry Canada (IC) / 1846A-XB9XR
Optional Radio: Digi XTend
Frequency / ISM 902 to 928 MHz
Transmit Power Output / 500 mW
Range Indoor/Urban / Up to 500 ft (150 m)
Range Outdoor/Line of Sight / Up to 7 miles (8.0 km)
RF Data Rate / 125,000 bps
Receiver Sensitivity / -110 dBm (9600 bps)
FCC Part 15.247 / MCQ-XBPSX
Industry Canada (IC) / 1846A-XBPSX
Power Requirements
External Voltage / 12 VDC
Maximum Power / 12 W
Physical Properties
Dimensions (HxWxL) / 12 x 12 x 5 cm
Power Connector / Switchcraft L722RAS
Operating Temperature / -40 to 50°C
Antenna
Connector / SMA Female (requires antenna with SMA plug) x 2
Impedance / 50 ohms
