LTS-06
Compact BLE and Mesh Radio Transceiver
Description
The LTS-06 is a compact wireless transceiver designed to strengthen and extend an LTS telemetry network. Its integrated Bluetooth Low Energy radio receives broadcasts from compatible wireless instruments, while its local mesh radio relays those measurements through the LTS system. This allows additional monitoring points to be introduced without installing data cabling or positioning a full instrument interface at every location.
Multiple LTS-06 units can be distributed through a facility or field area to route data around structures and other radio obstructions, reducing dead zones and improving network resilience. The unit operates from two AA alkaline batteries for portable deployments or from USB power for continuous service. Integrated encryption protects transmitted instrument data, with optional FIPS-140-certified algorithms available for applications requiring enhanced security.
Key Features
Bluetooth Sensor Collection
Receive broadcast measurements from multiple compatible Bluetooth Low Energy instruments and carry those readings into the wider LTS telemetry network.
Mesh Coverage Extension
Place LTS-06 units throughout the monitoring area to relay data between nodes, route around obstructions and reduce wireless dead zones.
Compact, Portable Deployment
A small enclosure and two-AA battery supply make the transceiver practical for temporary surveys, portable monitoring arrangements and rapid network expansion.
Continuous USB Operation
Power the unit from its Mini-USB connection when permanent or extended operation is required, avoiding dependence on battery replacement.
Secure Wireless Communications
Protect instrument data with integrated encryption. Optional FIPS-140-certified algorithms support deployments with additional cybersecurity or compliance requirements.

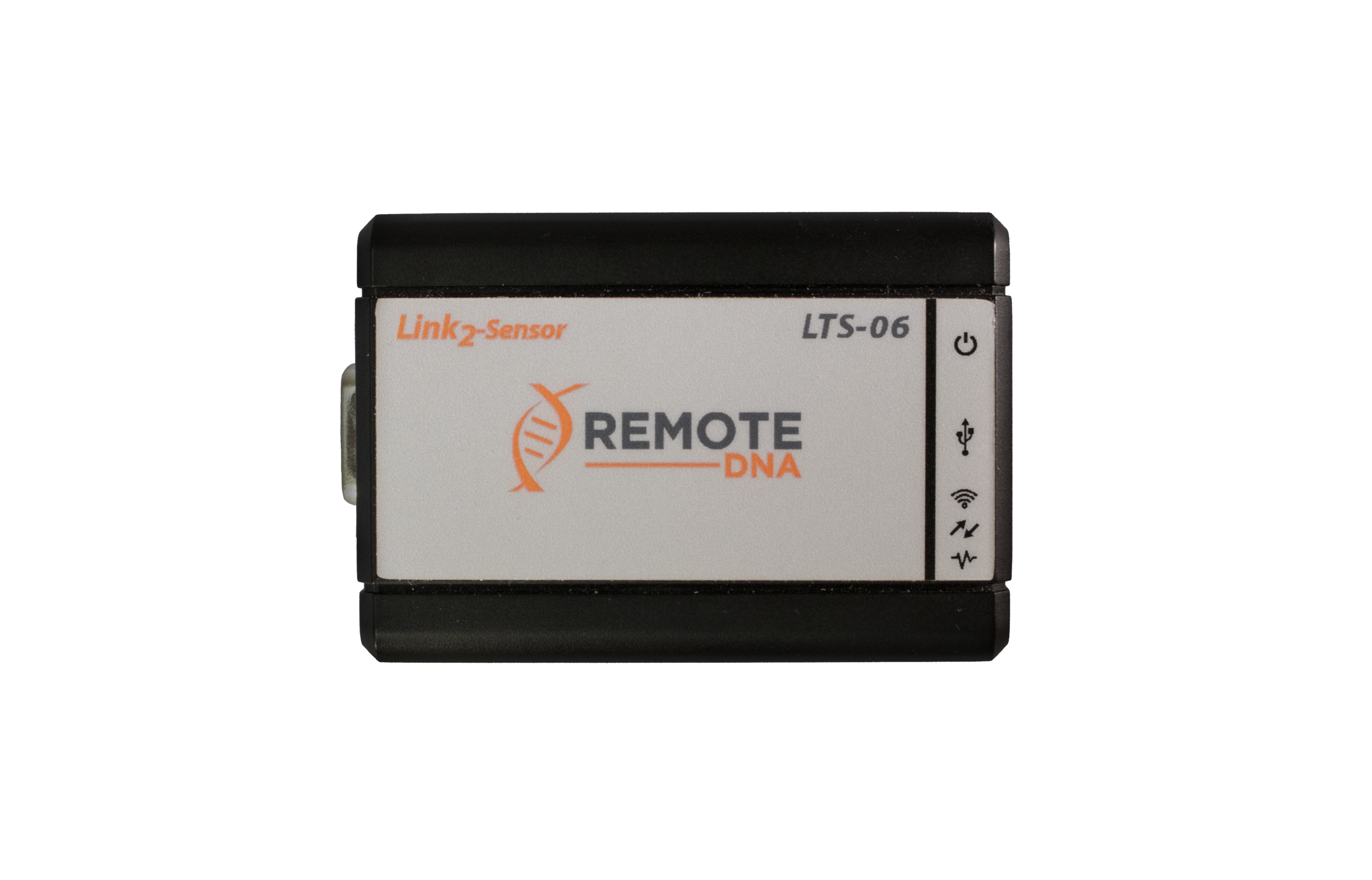

Product Images
Specifications
Power Requirements
Internal Battery / 2 x AA cell
Battery Voltage / 1.9-3.6 VDC
External Voltage / 4.75-5.25 VDC
Current / 1.0 A peak with high-powered radio; 50 mA with mesh and BLE
Physical Properties
Dimensions (HxWxL) / 3.2 x 5.4 x 7.8 cm
Weight / 135 grams without batteries
USB Connector / Mini-USB

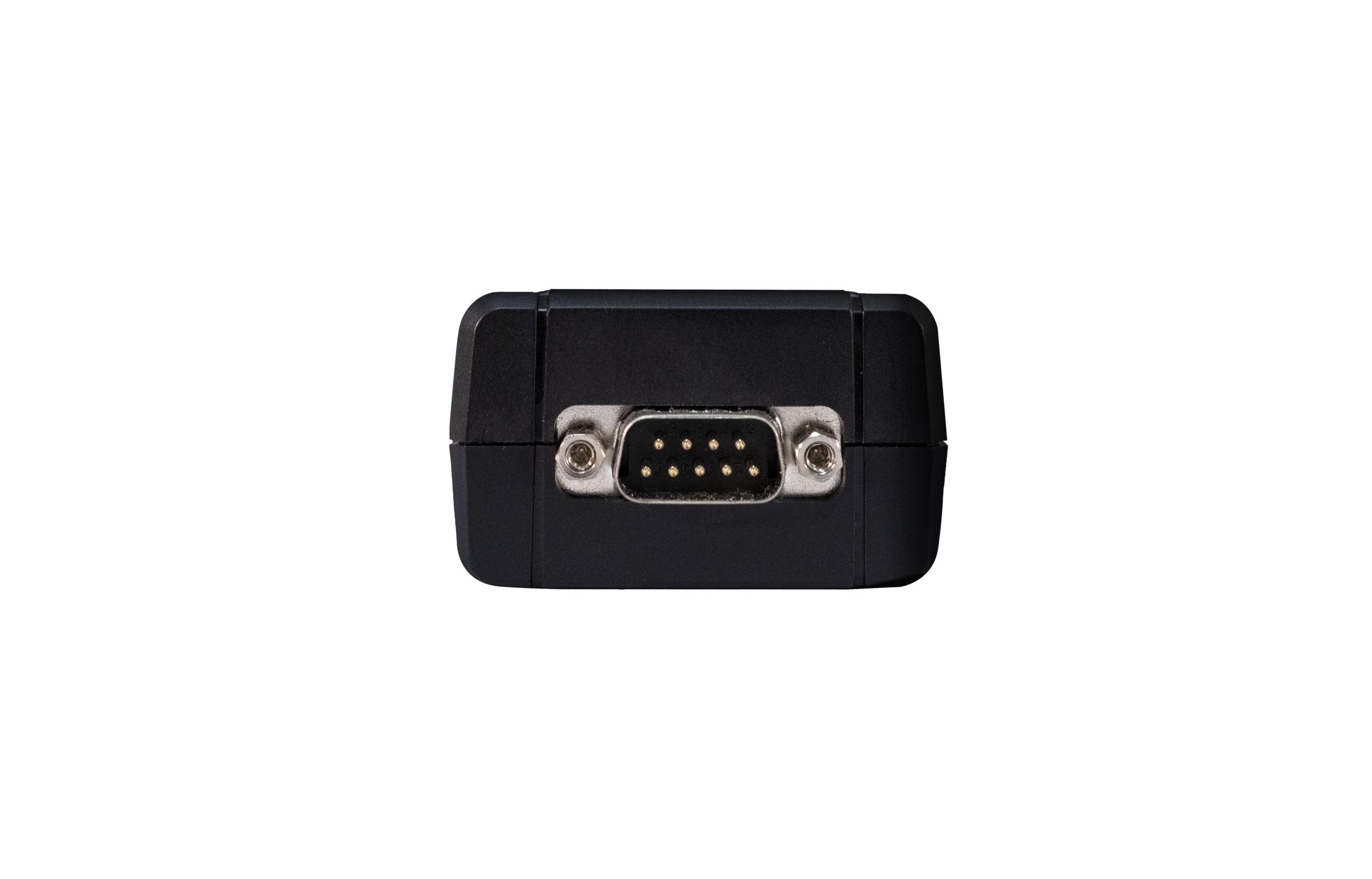

Serial Connector / DE-9 Male
Operating Temperature / -40 to 85°C
Local Mesh Radio Performance
Frequency / ISM 2.4-2.5 GHz
Transmit Power Output / 1.75 mW
Range Indoor/Urban / Up to 200 ft (60 m)
Range Outdoor/Line of Sight / Up to 100 ft (30 m)
RF Data Rate / 250,000 bps
Receiver Sensitivity / -102.1 dBm
FCC Part 15.247 / QOQMGM13P
Industry Canada (IC) / 5123A-MGM13P
