LTS-12
High Power Configurable Wireless Transmitter
Description
The LTS-12 Radio brings radiation-monitoring instruments into a dependable remote telemetry network, allowing measurements to be collected and transmitted without requiring personnel to remain near the monitoring point. It can operate as a field transmitter, network repeater or base station, connecting to more than 70 supported instruments through serial or Bluetooth interfaces. This makes it suitable for extending the useful life of existing equipment while creating a unified monitoring system.
Designed for fixed installations, temporary surveys and widely distributed monitoring locations, the LTS-12 supports local mesh networking as well as longer-range 2.4 GHz and 900 MHz radio options. It can operate from internal AA batteries or an external DC supply and is rated for temperatures from −40 to 50°C. Integrated encryption, with optional FIPS-140-certified algorithms, helps protect instrument data in security-conscious environments. The result is a flexible communications platform that improves coverage, reduces manual data collection and gives radiation-protection teams faster access to information from across a site.
Key Features
Flexible Telemetry Roles
Configure the LTS-12 as a field transmitter, repeater or base station, allowing the same platform to support both individual monitoring points and larger distributed networks.
Broad Instrument Compatibility
Connect more than 70 supported instruments from leading manufacturers using a DE-9 serial connection or Bluetooth Low Energy, reducing the need to replace existing monitoring equipment.
Expandable Wireless Coverage
Use local mesh networking, high-power 2.4 GHz or 900 MHz radio options, and LTS-06 relay devices to move instrument data across buildings, facilities and remote monitoring areas.
Secure Data Transmission
Protect monitoring information with integrated wireless encryption. Optional FIPS-140-certified algorithms are available for deployments with enhanced cybersecurity or compliance requirements.
Adaptable Field Operation
Deploy the LTS-12 in permanent installations or temporary monitoring campaigns. Support for internal batteries, external power and a wide operating-temperature range helps it remain practical across varied site conditions.

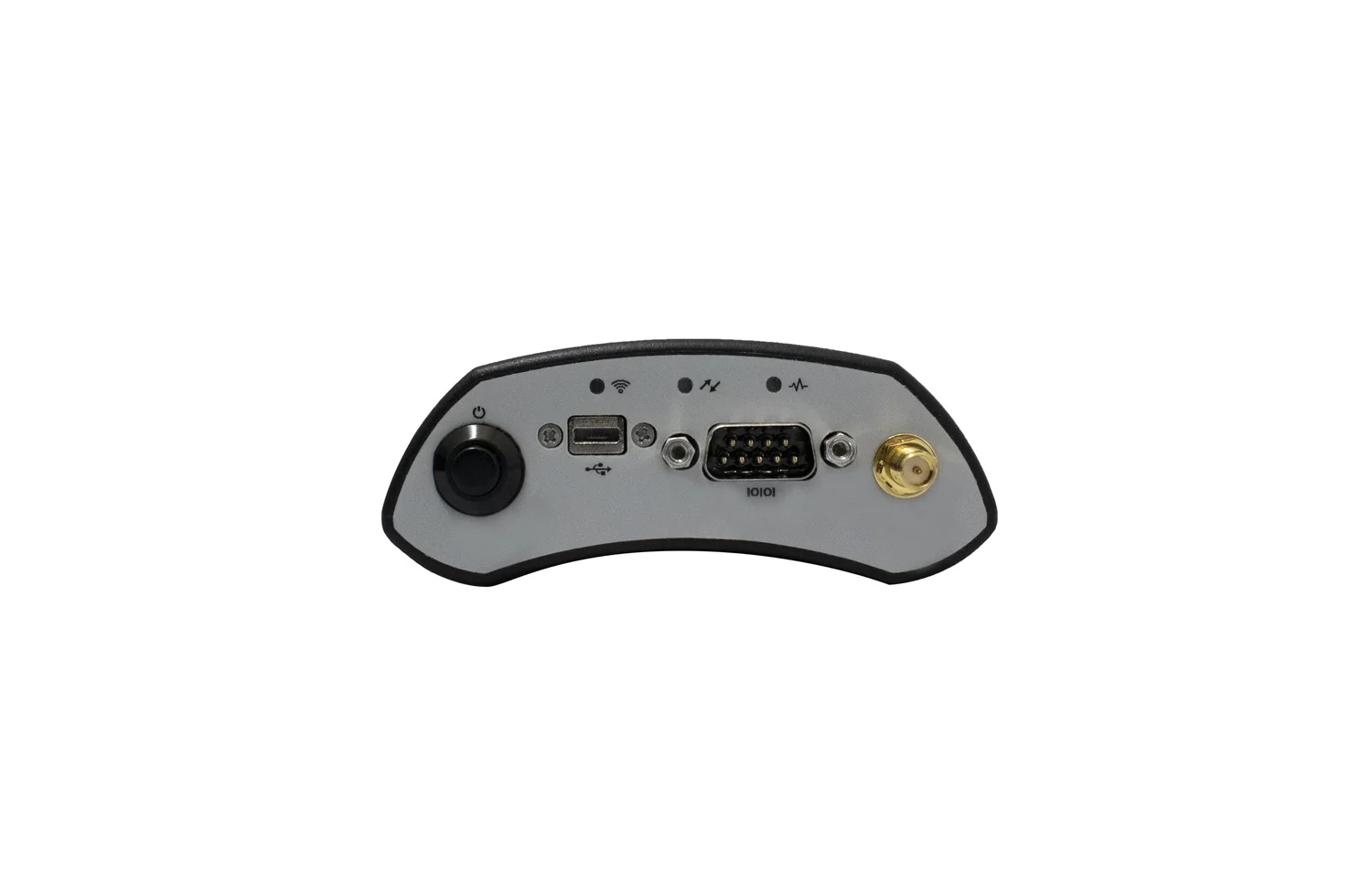

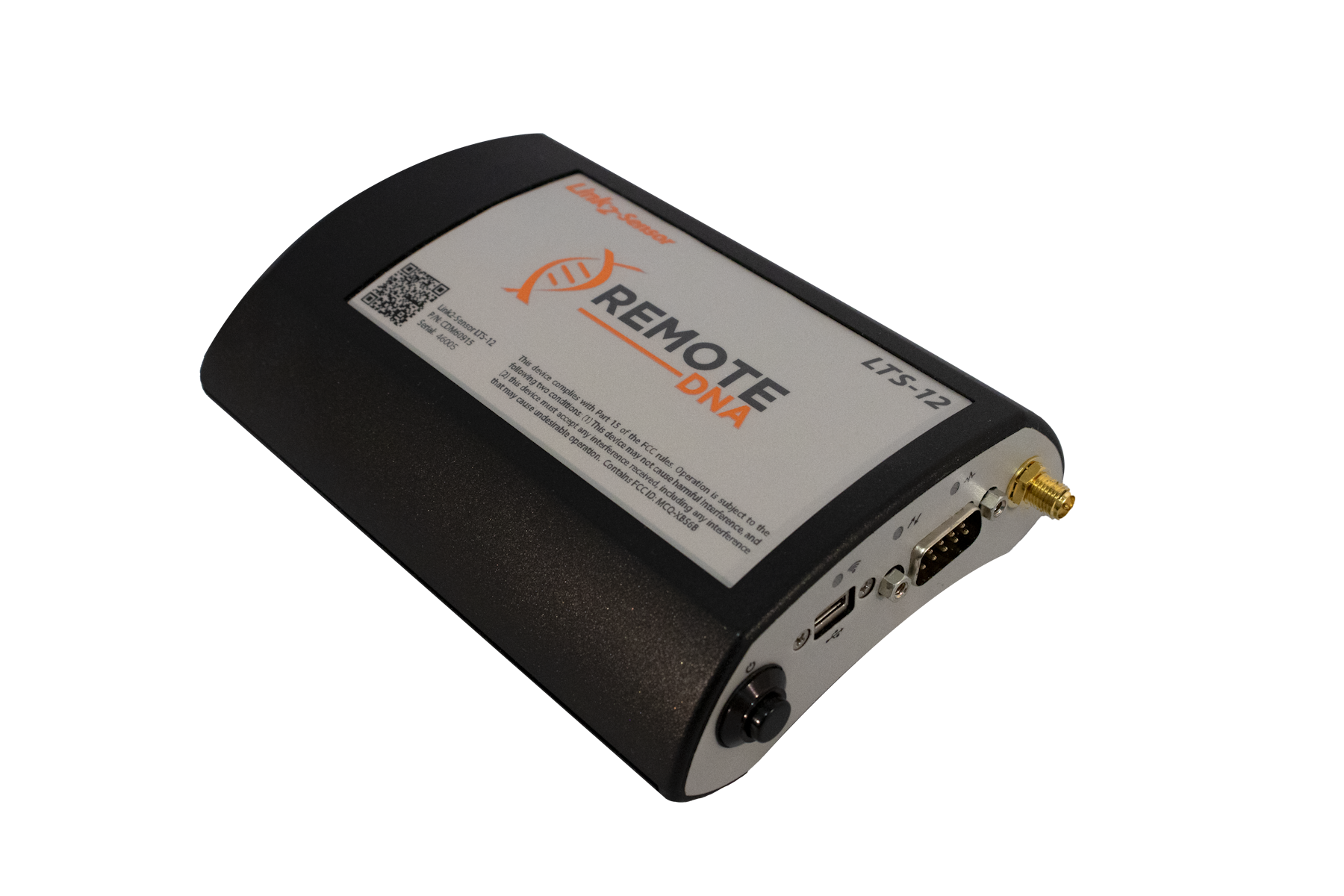

Product Images
Specifications
Local Mesh Radio Performance
Frequency / ISM 2.4-2.5 GHz
Transmit Power Output / 1.75 mW
Range Indoor/Urban / Up to 200’ (60 m)
Range Outdoor/Line of Sight / Up to 100’ (30 m)
RF Data Rate / 250,000 bps
Receiver Sensitivity / -102.1 dBm
FCC Part 15.247 / QOQMGM13P
Industry Canada (IC) / 5123A-MGM13P
Bluetooth Radio Performance
Frequency / 2400-2483.5 MHz
Transmit Power Output / 1.75mW
Range Line of Sight / Up to 100’ (30 m)
Receiver Sensitivity / -97.4 to –102.1 dBm
FCC Part 15.247 / QOQMGM13P
Industry Canada (IC) / 5123A-MGM13P
GPS Performance
General / GPS L1 frequency, GLONASS L1, SBAS L1; 99 acquisition channels, 33 tracking channels WAAS/EGNOS/MSAS/GAGAN enabled
Cold Start Time To First Fix (TTFF) / Typical 35s
Accuracy — Position / < 3.0 m
Accuracy — Velocity / 0.05 m/s
Accuracy — Time / 10 ns RMS
Sensitivity — Acquisition (cold start) / -148 dBm
Sensitivity — Tracking / - 165 dBm
Sensitivity — Re-Acquisition (hot start) / - 163 dBm
Optional Radio: HP Mesh
Frequency / ISM 2.4-2.5 GHz
Transmit Power output / 79 mW
Range Indoor/Urban / Up to 500’ (150 m)
Range Outdoor/Line of Sight / Up to 0.6 mile (1 km)
RF Data Rate / 250,000 bps
Receiver Sensitivity / -102.1 dBm
FCC Part 15.247 / QOQMGM13P
Industry Canada (IC) / 5123A-MGM13P
Optional Radio: XR
Frequency / 902 MHz – 928 MHz; 915 MHz – 928 MHz
Transmit Power output / 79 mW
Range Indoor/Urban / Up to 460ft/up to 3km (1.8mi)
Range Outdoor/Line of Sight / Up to 15km (10mi)
RF Data Rate / 110,000 bps
Receiver Sensitivity / -108 dBm (110 kbps)
FCC Part 15.247 / MCQ-XB9XR
Industry Canada (IC) / 1846A-XB9XR
Power Requirements
Internal Battery / 4 x AA cell
Battery Voltage / 4.0 – 6.9 VDC
External Voltage / 4.0 – 36.0 VDC
Current / 3A peak. 1A continuous Tx. 300mA local radio, GPS
Physical Properties
Dimensions (HxWxL) excluding antenna / 15.0 x 10.0 x 4.0 cm
Weight excluding batteries / 220 grams
USB Connector / Micro-USB
Serial Connector / DE-9 Male
Operating Temperature / -40 to 50°C
Antenna
Connector / RP-SMA Female (requires antenna with RP-SMA plug); Internal Board Mounted (low power radio)
Impedance / 50 ohms

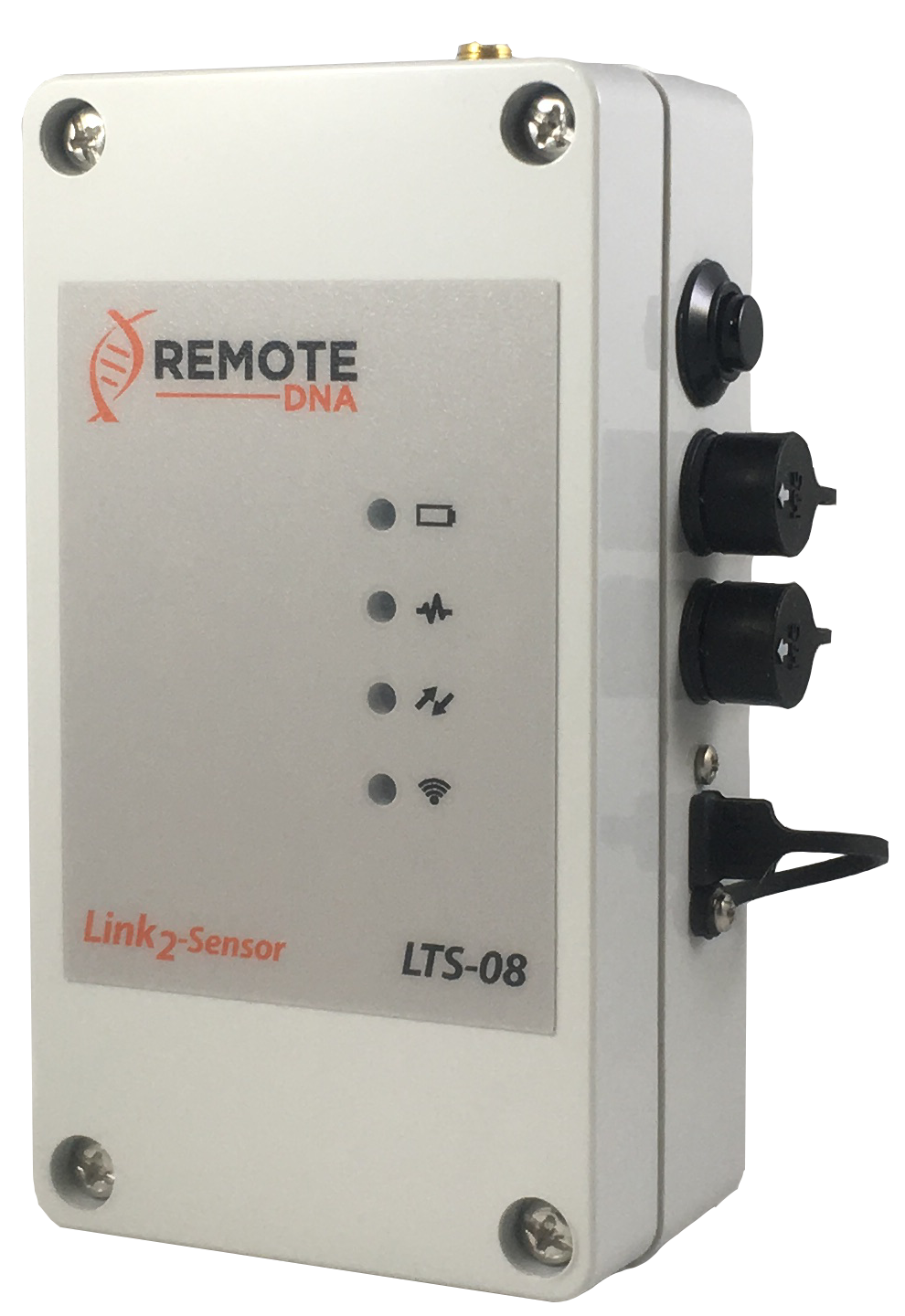

Related Products
